• Removes unwanted particles from liquid sulfur without manual intervention or dangerous situations.
• A very effective system where the pre- or final filtration in the range of 30-1000 microns range is required
• Its robust construction makes it suitable for industrial applications where reliability and continuous operation are essential
• Loss of sulfur is minimal
• Drainage is controlled individually by a control system
• The number of moving parts is limited
• There is no need for external assistance
• Offers the best sealing materials to suit sulfur processing
• An easy-to-change sealing box even makes customized solutions possible
• Only components that require no lubrication are used. This means a minimum of maintenance and no contamination of the liquid by the lubricant
• Can be fitted with a filter strainer rated at 30, 50, 75, 100, 150, 300, 500, or 1000 microns.
• Can be delivered with approval for use in explosive atmospheres
• Special versions can be supplied according to your requirements
• Made of carbon steel or proof stainless steel

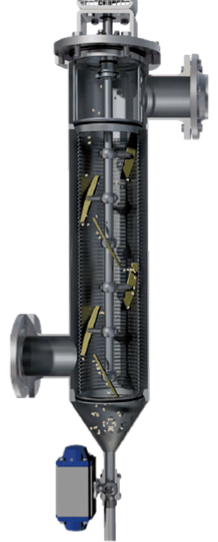

Sulfur flows from the inside to the outside of the filter elements.
Dirt particles are retained on the inside surface of the filter element.
Rotating scrapers ensure that the filter has a very high dirt removal capacity due to the frequent scraping of the surface.
Several angled-positioned, rotating scrapers push the solid particles down into the sludge chamber where a concentrated slurry is formed.
This slurry is drained at appropriate intervals through a discharge valve at the bottom of the filter.

Sulfur Processing
Amine Treating
Chlor-Alkali
Mining and Metallurgy
Chemical Process Industry
Foods and Beverages
