Jacketed Valves for Liquid Sulphur

Jacketed Valves for Liquid Sulphur

Sulphurnet offers all types of valves fitted with Heating Jackets. Heating jackets are required where the process temperature must be maintained throughout the valve in order to keep the process media fluid at a constant temperature. In particular, where there is potential for media to be trapped within a closed valve the heating jacket can be vital in maintaining the process temperature and preventing the trapped product from solidifying.

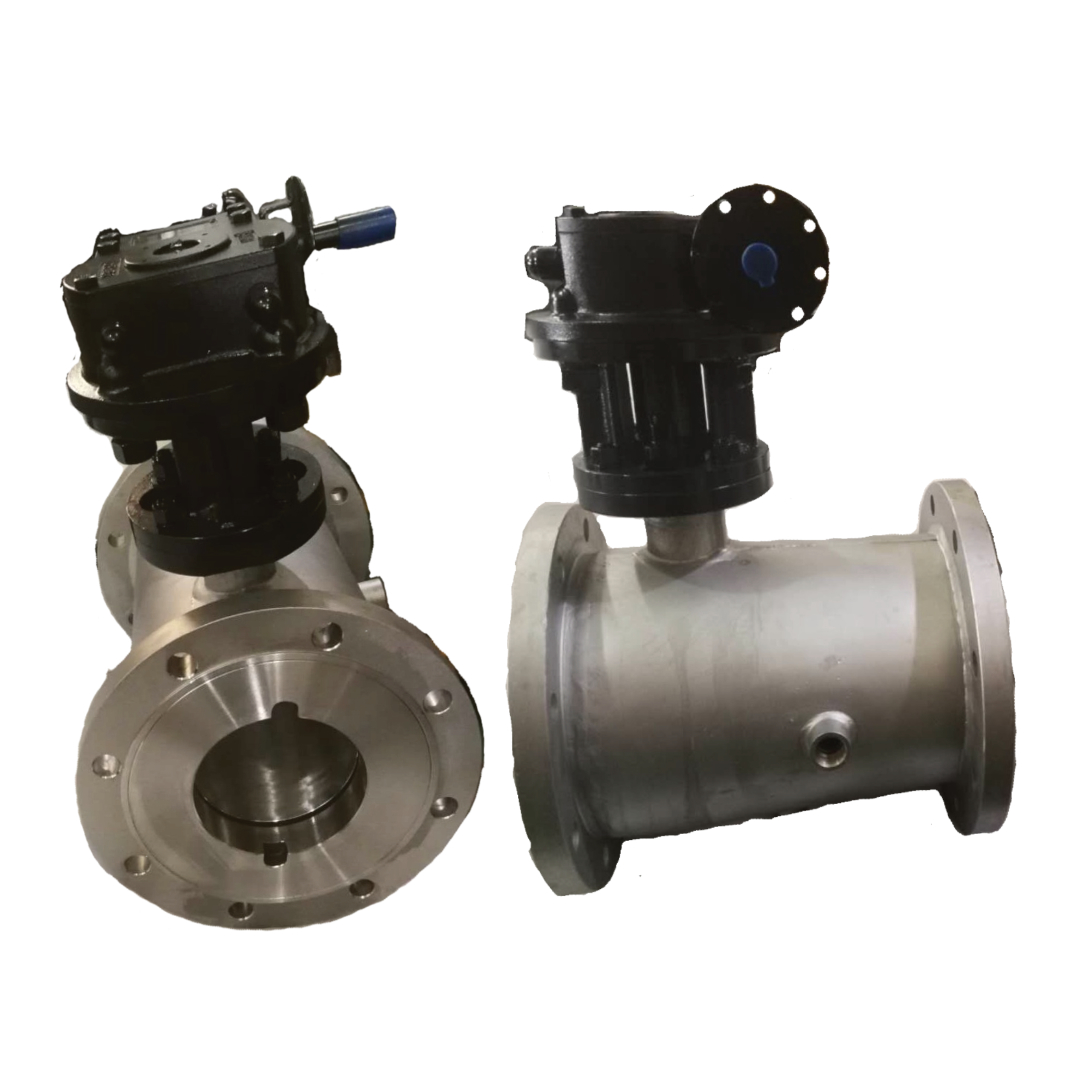

  • Jacketed Ball Valves

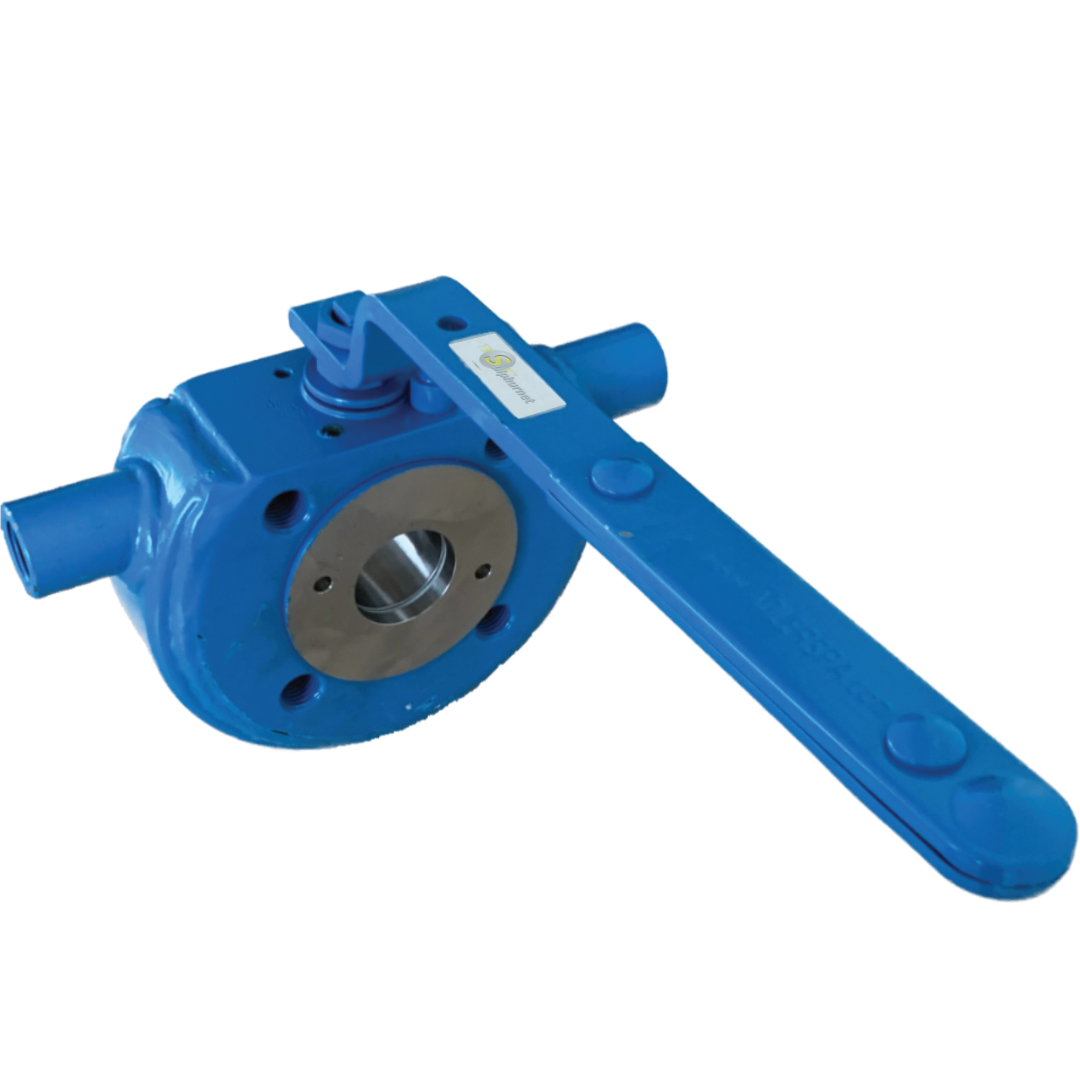

  • Wafer Type of Jacketed Ball Valves

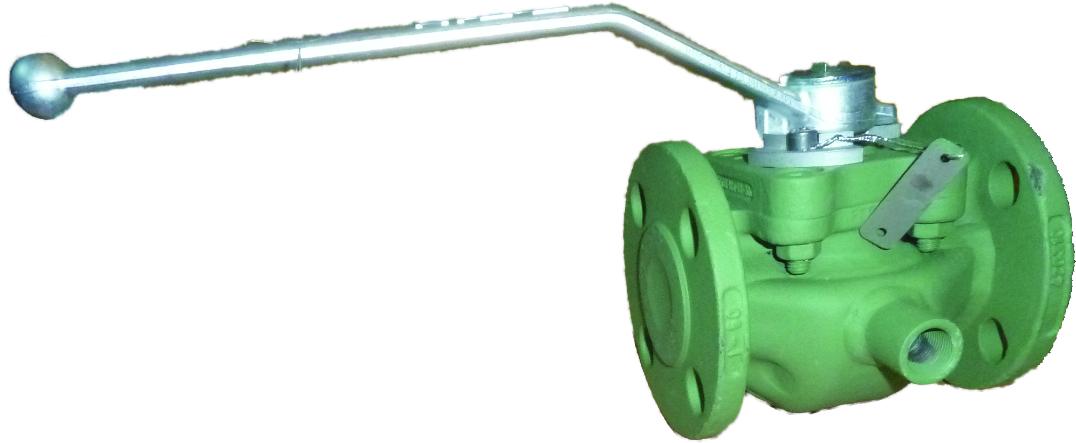

  • Jacketed Plug Valves

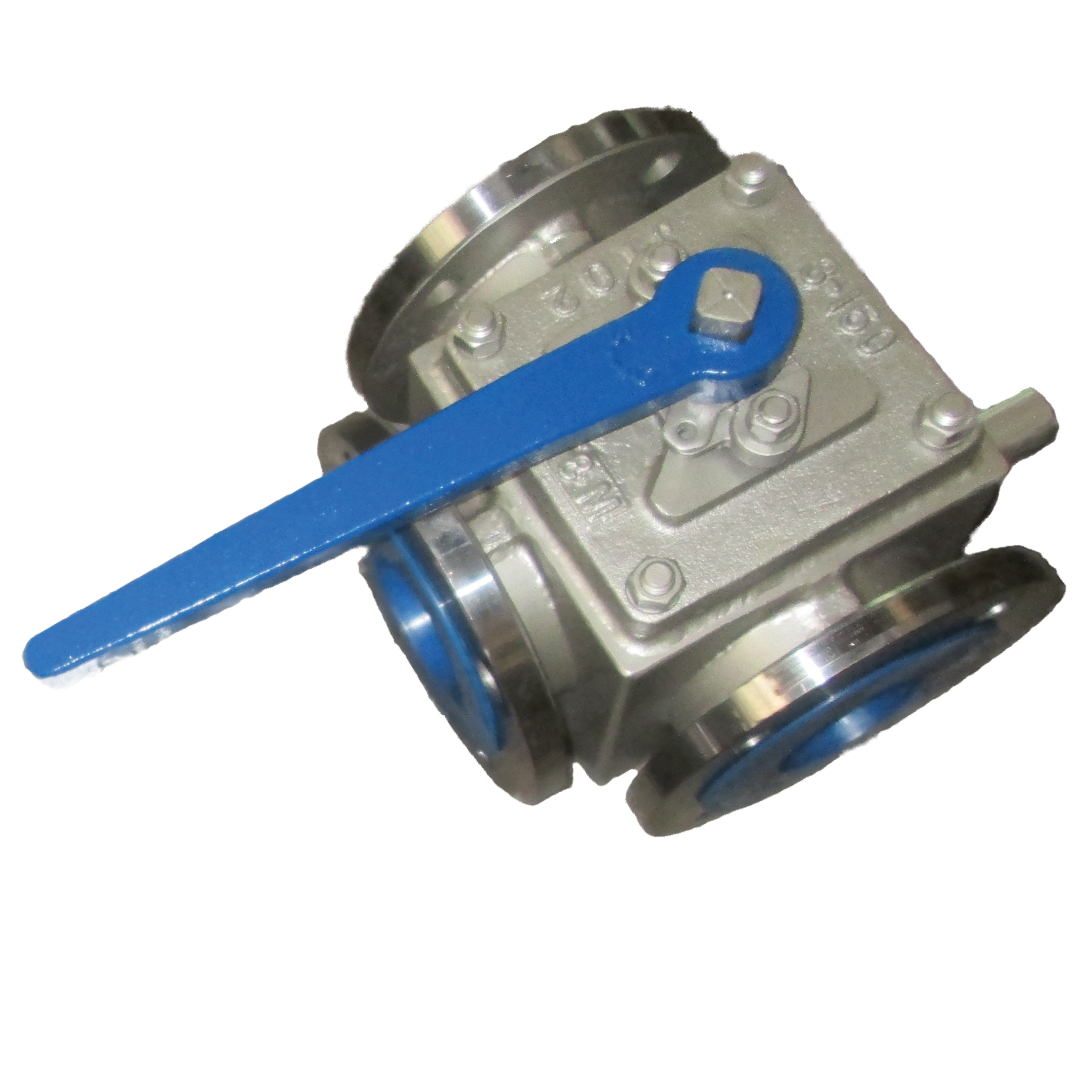

  • 3 Way Valves
  • Gate Valves
  • Globe Valves
  • Check Valves

Design Features

DN15-DN600 PN16-PN40
Flanged connections

1/2″-24″ ANSI 150# or 300#
Flanged connections

NPT or Flanged connections

-10ºC to 180ºC

Body, ball or plugin and jacket can be manufactured in:
Carbon Steel (ASTM A105, A216 WCB, S275JR)
316SS Austenitic SS (ASTM A182 F316-L, A351 CF8M, ASTM A240 316L)

Seat:
PTFE; Glass Fibre/ Graphite reinforced;
Peek on request

Manual Lever
Gear Box
Actuated: Pneumatic, electrical and hydraulic
