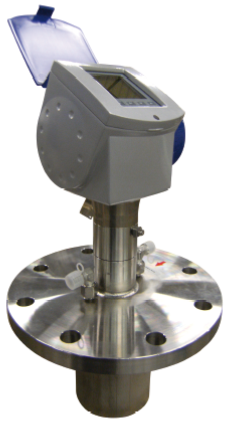

Our jacketed radar level indicatoris a solution that offers reliable, low-maintenance level measurement for all sulphur-containing tanks. It is suitable for use in both agitated sulphur melters and sulphur storage tanks and is approved for use in hazardous areas.

Utilizing frequency modulated continuous wave (FMCW) technology, it provides precise measurements with an accuracy of ±3 mm up to 10 meters and repeatability of ±1 mm, even in tanks with turbulent surfaces or internal obstructions.
The built-in heating system on the antenna, integrated with the site’s hot steam circuit, prevents sulphur condensation, enhancing performance in harsh environments. The transmitter is easy to install and configure, with a wizard-driven setup and minimal wiring requirements, making it a cost-effective and efficient solution for level measurement in hazardous areas.

– Frequency Modulated Continuous Wave (FMCW) Technology: Offers great value and performs well in agitated tanks.
– Non-Contact Radar: Provides maintenance-free level measurement.
– Wide Dynamic Range: Accurate readings regardless of reflective medium, tank height, or moving surfaces during filling and emptying.
– Easy Setup and Use: Simple installation with minimal wiring and straightforward wizard-driven configuration reduces setup costs.
– Antenna Heating System: Integrated with the on-site hot steam circuit to prevent sulphur condensation, requiring no additional installation steps.
– No Gas Consumption: Lowers operational costs, making it a very cost-effective solution.

– Reliable measurement: +- 3 mm accuracy up to 10 m and +- 1 mm
repeatability, even in tanks with agitated surfaces or internal objects.
– Operates up to a process connection temperature of 200ºC. Measuring range up to 80 m
– A heating system on the antenna prevents the condensation of sulphur.
Setup is wizard-driven.
– A large LCD Display with 4 button keypad makes operation easy without opening
the housing (Optional)
